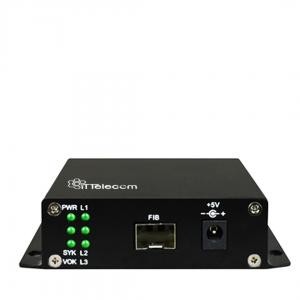

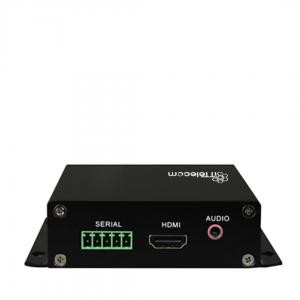

1channel Uncompressed 4K HDMI Fiber Mux

مشخصات فنی 1channel Uncompressed 4K HDMI Fiber Mux

• Product function description:

• 1 channel 4K HDMI Fiber Mux

• Service port description:

• Transmitter: 1 channel 4K HDMI interface in; receiver: 1 channel 4K HDMI interface out; 1 LC fiber interface

• Fiber:

• Fiber: single fiber, double fiber
• Fiber interface: LC
• Wavelength: 850nm/1310nm multimode; 1310nm/1550nm single mode
• Transmission distance: 10~80Km
• Typical transmit power:
  • Single mode 1310/1550nm: ≥-9dBm
  • Multimode 850nm: -18dBm
  • Multimode 1310nm: -25dBm
• Receiving sensitivity range: -33dBm~-40dBm

•Hdmi Port:

• Interface: HDMI female
• Standard: HDMI 1.4 HDCP1.4
• Pixel bandwidth: 340MHz
• Resolution: 1920 x 1080P24, 1920 x 1080P25

• Electric and mechanic feature:

• System power: AC180V～260V; DC –48V; DC +24V
• Power consumption: ≤10W

• Working environment:

• Working temperature: -10℃—+60℃
• Storage temperature: -40℃—+85℃
• Working Humidity: 0%—95% (no condensation)
• MTBF: ＞100,000 hour

• Power supply:

• AC220V or DC-48V

• Product Size:

• (L×W×H) 17312830mm Desktop

• Weight:

• 0.9Kg/pc
