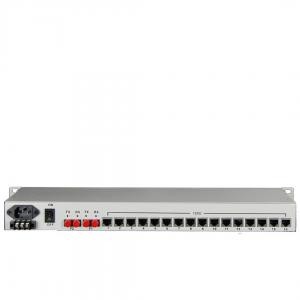

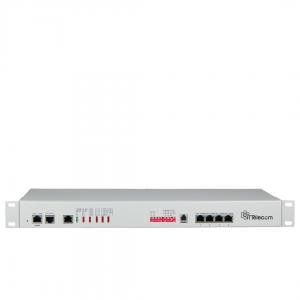

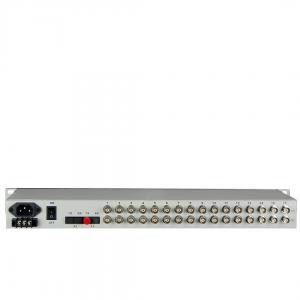

سیستم 16PDH کانال ایوان به همراه 4 پورت شبکه

مشخصات فنی سیستم 16PDH کانال ایوان به همراه 4 پورت شبکه

 Fiber

• Multi-mode Fiber
  • 50/125um, 62.5/125um
  • Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber, attenuation (3dbm/km)
  • Wave Length: 820nm
  • Transmitting power: 12dBm (Min) ~-9dBm (Max)
  • Receiver sensitivity: 28dBm (Min)
  • Link budget: 16dBm
• Single-mode Fiber
  • 8/125um, 9/125um
  • Maximum transmission distance: 40Km @ 9 / 125um single mode fiber, attenuation (0.35dbm/km)
  • Wave Length: 1310nm
  • Transmitting power: 9dBm (Min) ~-8dBm (Max)
  • Receiver sensitivity: 27dBm (Min)
  • Link budget: 18dBm

 Gigabit Ethernet Interface (10/100/1000M)

• Interface rate: 10/100 /1000Mbps, half/full duplex autonegotiation
• Interface Standard: Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)
• MAC Address Capability: 4096
• Connector: RJ45, support Auto-MDIX

Working environment

• Working temperature: -10°C ~ 50°C
• Working Humidity: 5%~95 % (no condensation)
• Storage temperature: -40°C ~ 80°C
• Storage Humidity: 5%~95 % (no condensation)

Functional Description:

• 16E1+4GE PDH 19''inch 1U，Optional(order wire phone，Console，SNMP 1+1 Back up Optic fiber)

Port Description:

• Two optical interfaces with 1+1 port redundancy
• 16*E1 interfaces (75/120 ohms)
• 4*GE interfaces
• 1*RS232 Console interface
• 1*SNMP Ethernet interface
• One engineering order-wire telephone interface

Power:

• Power supply: AC180V ~ 260V；DC –48V；DC +24V
• Power consumption: ≤15W

Dimension:

• Product Size: 19 inch 1U 483X138X45mm(WXDXH)

Weight:

• 3.0KG
